Brand Name : | Lipu |
Model Number : | YG0830E4060 |
Certification : | ISO9001:2008,CE,IQNet |
Price : | negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 30sets/quarter |
Delivery Time : | 15-20 days |
Wheel Type Mobile Crushing and Screening Plant Used for Stone
Crushing
Wheel type mobile crushing plant is a newly designed rock crushing
& screening plant, which is
flexible, convenient and strong in mobility, so it can save a large
construction capital and relocation
cost. Raw Materials can be broken at the locale without being
transported again and also can be moved
with the promotional exploitation of the raw material, which saves
a large number of transportation
costs. We specialize in producing mobile crusher, screen,
transportation, and other rock breaking and
minerals processing equipment. On the basis of the professional
technology, we optimize and introduce
newly two large mobile crushing and screening plants: the tracked
type crushing plant and wheel type
mobile crusher plant. Each large series is divided into three
series: rough, middle and fine crushing and
screening mobile plant. Therefore, our wheel type mobile crusher
plant can fully adapt to the various
mobile crushing and screening, which creates more new business
opportunities for customers while
reducing the cost of the production.
Application:
Our wheel type mobile crushing plant is applied to crush large size
materials, and then screens the
discharges according to their different specifications. The whole
set of plants is widely used in mine,
building material, highway, rail way and hydropower industries,
etc.
Features:
1. A complete plant, all the machines are installed on the trailer,
save the occupation space, enhances
the working efficiency, finish crushing and screening operations at
one time, produce required size and
output for consumers;
2. Strong flexibility; the mobility is very good, it can extend
according to the raw material places or the
construction places, and Mobile Crusher(Portable Crusher) can also
make multiple matching to suit
different product requirements;
3. High efficiency and saving energy;
4. Reliable working, convenient operation, and easy maintenance
Specification and Model:
Model | YG0830E4060 | YG0830E5075 | YG9538E6090 | YG1149E75110 | YG1249E86110 |
Feeder Model | GZD0830 | GZD0830 | GZD9538 | GZD1149 | GZD1249 |
Crusher Model | PEV400×600 | PEV500×750 | PEV600×900 | PEV750×1100 | PEV860×1100 |
Iron Separator Model (optional) | RCYD(C)-5 | RCYD(C)-6.5 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 |
Tyre Parameters | Double- axle | Double- axle | Double- axle | Triplex-axle | Triplex-axle |
Belt Conveyor Model(mm) | B500×8.5m | B650×8.5m | B800×8.5m | B1000×10m | B1200×10m |
Belt Conveyor Discharging height(mm) | 3000 | 3000 | 3000 | 3200 | 3200 |
Side Belt Conveyor Model(optional) | B500×4m | B500×4m | B500×4m | B650×5m | B650×5m |
Side Belt Conveyor Discharging height (mm) | 2800 | 2800 | 2800 | 3100 | 3100 |
Generator Power(kW)(optional) | 80 | 120 | 160 | 200 | 250 |
Transport length(mm) | 9700 | 10500 | 11900 | 13100 | 14600 |
Transport Width(mm) | 2550 | 2550 | 2550 | 2550 | 2550 |
Transport Height (mm) | 3650 | 3800 | 4000 | 4300 | 4500 |
Operation Length(mm) | 9700 | 10500 | 11900 | 13100 | 14600 |
Operation Width(mm) | 2550 | 2550 | 2900 | 2950 | 3300 |
Operation Height(mm) | 4060 | 4200 | 4400 | 4810 | 5300 |
Weight(t) | 17 | 28 | 39 | 57 | 65 |

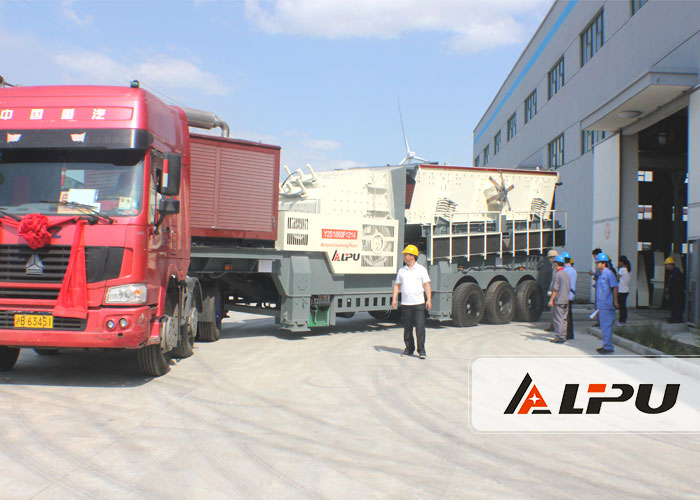

Mobile Crushing Plant Shipped to Malaysia:
![]() |
