    4.3 T Mini Vibrating Feeder Aggregate Hopper Feeder With Large Capacity

    Ask Lasest Price
    Brand Name : Zoneding
    Model Number : GZD1149
    Certification : ISO9001:2008,CE,IQNet
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-25 days after receiving advanced payment.
    • Product Details
    • Company Profile

    4.3 T Mini Vibrating Feeder Aggregate Hopper Feeder With Large Capacity

    Mini Vibrating Powder Feeder Aggregate Hopper Feeder With Large Capacity

    Brief Introduction:

    Vibrating Feeder is mainly used to feed materials evenly and continuously into belt conveyor, bucket elevator, screening and crushing equipment before primary crusher, also used for screening fine materials to increase the processing capacity of crusher. The feeding amount can be adjusted flexibly to achieve centralized control and automatic control in the production process.

    Performance Features:

    1. Easy structure.

    2. uniform feeding and remarkable continuity.

    3. Exciting force is adjustable.

    4. The flow can be changed and controlled at any time.

    5. Low noise and electricity consumption.

    6. Good adjustability.

    Working Principle:

    Stable Vibration Feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.

    Technical Parameters:

    Model

    Vibration frequency(r/min)

    Double-amplitude(mm)

    Capacity (t/h)

    Power

    (kW)


    Overall dimension

    (mm)

    Weight (t)

    GZD9538

    970

    4-6

    120-210

    2×3

    3910×1520×1460

    3

    GZD1149

    970

    4-6

    160-320

    2×5.5

    5010×1670×1710

    4.3

    GZD1249

    970

    4-6

    180-380

    2×5.5

    5010×1770×1710

    4

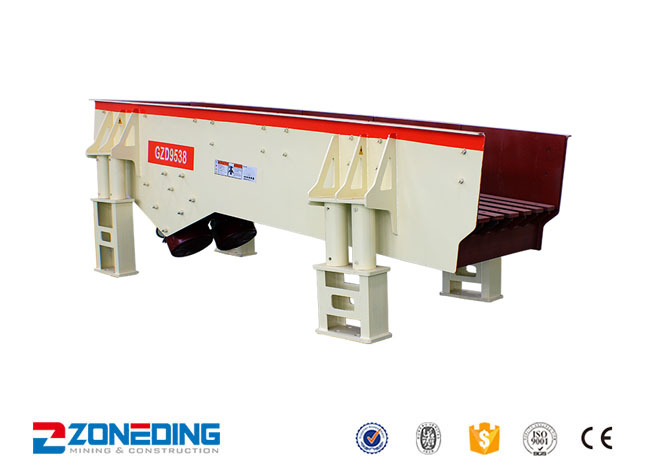

    Product Picture Show:


    Quality 4.3 T Mini Vibrating Feeder Aggregate Hopper Feeder With Large Capacity for sale
