    Wet Drum Separator Ore Dressing Plant Magnetic Separator For Ceramic

    Ask Lasest Price
    Brand Name : Zoneding
    Model Number : CTB1540
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 90 Set/Sets per Quarter
    Delivery Time : 30-45 working days after received your payment
    • Product Details
    • Company Profile

    Wet Drum Separator Ore Dressing Plant Magnetic Separator For Ceramic

    Gold Mine Equipment Of Magnetic Separator Ore Dressing Plant With Large Capacity
    Brief Introduction of Magnetic Separator
    Magnetic separator is usually used for sorting fine-grained magnetic minerals, or removing magnetic minerals from non-magnetic minerals.

    1. It can be used in the coarse selecting of poor iron ore to exclude the surrounding rack and waste rock and improve the quality and reduce the load of the next process.
    2. It can select not fully reductive raw ore in the hematite reduction closed roasting assignments for rebury.
    3. In the ceramic industry, it can remove the iron from the roasting operation to improve the quality of ceramic production.
    According to specific need, customers can choose from many kinds of magnetic separators with different surface magnetic intensity such as downstream type, semi-reflux type and reflux-type.
    Features of Magnetic Separator
    1. High magnetic intensity;
    2. Low energy consumption;
    3. Good beneficiating efficiency;
    4. Simple structure and easy maintenance.

    Working Princle:
    Slurry enters chute through ore tank firstly, and then separating zone by waterpower. Mineral with strong magnetism is absorbed on the barrel surface, sent to concentrate discharging zone and discharged Into concentrate box by water effect. Gangue and ore with weak magnetism are discharged into a pipe in opposite direction of barrel.
    Technical Parameters:

    Model

    Shell diameter (mm)

    Shell length (mm)

    Capacity (t/h)

    Power (kW)

    Overall dimension

    L×W×H(mm)

    Weight (t)

    CTB1540

    1500

    4000

    115-220

    11

    5230×2300×2350

    10.5

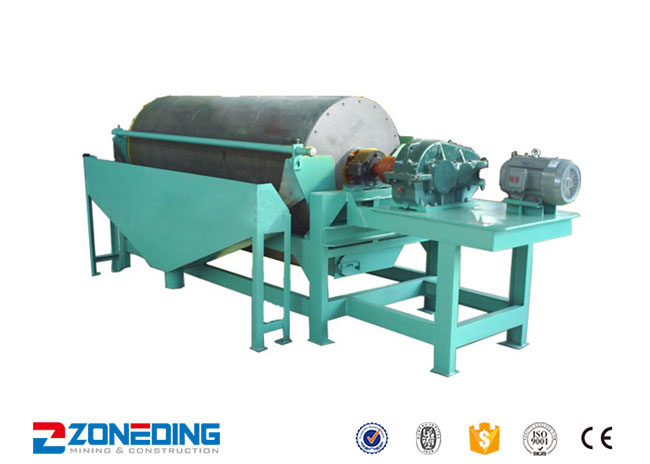

    Product Picture Show:

    Quality Wet Drum Separator Ore Dressing Plant Magnetic Separator For Ceramic for sale
