    Industrial 210kw Power Cement Ball Mill Cement Grinding Machine 35t Weight ISO9001

    Ask Lasest Price
    Brand Name : Zoneding
    Model Number : 1830×6500
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

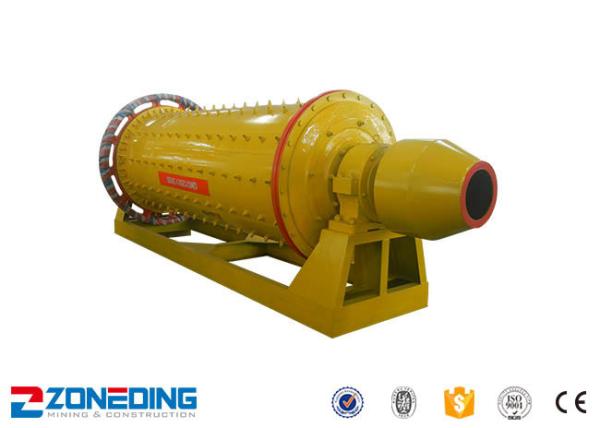

    Industrial 210kw Power Cement Ball Mill Cement Grinding Machine 35t Weight ISO9001


    New 1830×6500 ball mill machine / cement mill steel ball mill


    Introduction of Cement Ball Mill:

    The ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.


    Working Principle:

    When the materials processing, they are transferred to the grinding chamber through
    the quill shaft uniformly. Firstly the centrifugal force caused by rotation of barrel
    brings the steel balls to a certain height, then the steel balls impact and grind the
    materials into fine powder over a period of several hours. The ground materials are
    discharged through the discharging board ,lastly the grinding process is finished.


    Features:
    1. Cylinder takes overall annealing process, eliminating welding stress and preventing deformation.
    2. Flanges on both ends of cylinder adopt large CNC lathes and special processing technology which fully guarantee concentricity.
    3. The hollow axis adopts the cast steel.
    4. The lining can be replaced.

    Technical Data:

    ModelSpeed(r/min)

    Max. weight of

    balls(t)

    Input size

    (mm)

    Output size

    (mm)

    Power(KW)

    Capacity

    (t/h)

    Weight(t)
    Φ900×1800371.8≤150.075-0.89150.5-23.4
    Φ900×2100372.3≤150.075-0.418.50.4-23.9
    Φ900×3000353.85≤250.075-0.4301.1-2.57.78
    Φ1200×2400354.6≤250.075-0.4301.3-3.28.65
    Φ1200×2800355.4≤250.075-0.4371.5-3.710.02
    Φ1200×4500358.6≤250.075-0.4452.7-6.7914
    Φ1500×3000299≤250.047-0.4753.3-8.214.12
    Φ1500×35002910.5≤250.047-0.4753.3-8.515.64

    Quality Industrial 210kw Power Cement Ball Mill Cement Grinding Machine 35t Weight ISO9001 for sale
